|CANEX WIRE LAYING SOLTUION:||Electro Fusion Fitting Wire Laying Machine||Application For:||Electro Fusion Saddle, Electrofusion Reducer,electrofusion Tee, Electrofusion Elbow Electrofusion Fi|
HDPE Electro fusion wire laying / PPR Wire Laying Machine
CX-315/630ZF Wire Laying Machine
automatic wire laying for pe electrofusion fittings
PE electrofusion fittings wire laying
wire laying machine for Electrofusion fittings particularly of PPR material
CX-315/630ZF Electrofusion Fittings Production Equipment
Size for : 315----630 Pipe couplings/45-90 elbow / Reducer/ Tee
Working way : vertical and herizontal
Electro fusion fittings made of : hdpe pipe /injection mould fittings.
Applications : E/F Coupling, Tee, Eelctrofusion 90degree Elbow, 45degree Elbow,
Flange, E/F Reducer, Electrofusion Pad,Saddle etc. Saddle wire laying machine
Non-standard wire laying machines can be customized.: new fixture/clamps/toolings necessary.
CANEX INTERNATIONAL CORP., LTD is a comprehensive manufacturer for PE Electro Fusion Fittings Equipment We develop Electrofusion wire laying machines/Injection moulds /Wiring Terminal lathe. For the production of electrofusion fittings used to join thermoplastic pipes. We adopt Delta (Taiwan) CNC Controlled System/ CTB Servo Motor Schneider Electric / OMRON etc. famous brand electrical appliances. CANEX machines are strictly under the control of ISO9001:2000 QC system. All CX-**/**ZF Series machines have high quality and stable performance. With strong relationships and good credit,we cooperate closely to develop the global markets together.

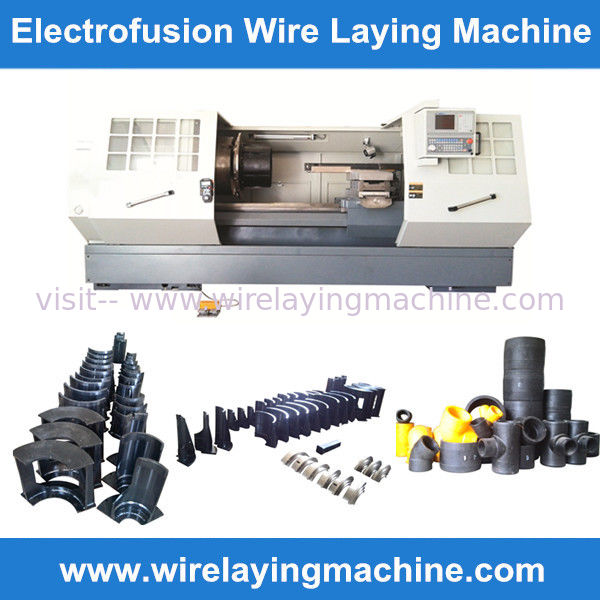

PE electrofusion fittings wire laying-Electrofusion coupling wire laying machine
Electrofusion pad wire laying machine
CX-315/630ZF ElectroFusion Wire Laying Machine
tapping tee wire laying machine
canex wire laying solution
ONE---- Electrofusion fittings
Electrofusion fittings are used as pipe connecting, tube inner wall surface embedded heating with copper wire,
copper wire at both ends of the connection dedicated electric welding machine with terminals.
msa wire laying machine
Electrofusion Welding Process
Applying a controllable ends embedded in the copper tube fever upper power supply voltage terminal,
so that it is embedded in the tubular member under the action of the copper current to generate heat,
the surface of the plastic pipe and the inner surface of the pipe member is inserted into the tube and melt through the plastic melt expansion force of the surface and the inner surface of the pipe fittings tangled molten plastic, play a role in the connection after melt cooling.msa wire laying machine
CANEX Electrofusion Wire Laying Machine-Process
Injection Molded fittings or PE Pipe as material for Electrofusion fittings,By mechanical boring cutting to achieve required inner size,
Embedded copper wires into the fittings,shape the inner surface. All processes are finished after one time setup.
The principle of wire laying.
Pipe fittings rotate with special wiring tool.
The wiring cutter move in accordance with CNC Programming, form a continuous fixed or variable pitch;
Wiring tool cut the inner surface, scratched plastic will curve outside, embedded copper wire at the same time.
Close the scratched plastic with wheels.
1 High precision of pipe inner size(Ovality less than 0.1mm).
2 Easy operation, Controlled by CNC Parameters.
3 Copper wire buried by the way of cold process.wires are not encounter relaxation force or fallen.
4 Low individual differences of resistance. Facilitate unified welding process.
Applications for wire laying machine
Pipe couplings :E/F Coupling,Tee, E/F 90°Elbow,45°Elbow,Flange,E/F Reducer,
Electrofusion saddle wire laying. tappling tee wire laying machine
tapping saddle wire laying machine
Canex Wire Laying Machine Production efficiency
Any(CNC Programming Control)
Canex Electrofusion Wire Laying Model and Size Range
Electrofusion fittings for HDPE Gas and Water Pipes
TWO---- Electrofusion fitting Production Equipment
1,Control system adopt DELTA CNC, our company united DELTA since 2009 , Develop 4 Axis CNC System according to our pipe fitting wire laying process design,
Our company own proprietary intellectual property rights.
2,Wire laying machine : Horizontal format machines and Vertical format machines.
3,Adopt hydraulic or pneumatic automatic way of fastening. 4 Axis CNC Control System assure production phase and repeatedly operations.
4,Adopt wireless hand wheel control, enjoy convenient operations
Canex Wire Laying Machine -Equipment Operating Procedures
1 Pipes fittings put into machine main clamp manually.
2 Cutting inner surface of pipe fittings as per CNC Programming.Achieve required size
3 Embedding wires into pipe inner surface as per CNC Programming, meet design demands` pitch.(wire laying)
4 Shaping inner embedded wire wall as per programmed CNC,in order to reach targeted tech demands
Canex-Laying Wire Steps
1 Heavy boring.
Boring and chamfering under the condition of main axis started,
hole & angle as per tech demands,Edit program processing automatically. (can be changed as per demands)
2 Laying wire
The process of embedding wires called laying wire
Set final boring program comply with high demands on tolerance. (Exam.0.5mm distance from surface,set final boring program )
in order to assure roundness tolerance, inner hole tolerance,and assembling smoothly.
During the wire laying,the flipped plastic can not balance with inner surface,overmuch lead to inconvenient assembling,
suggest set final boring program. (as per practical situation)
Binding Post - Terminal Pin
1 Cutting wire and pass through centre hole of Binding post ;
2 Put binding post into stamping tool;
3 Press binding post into pipe fittings, remain the end of resistance at middle taper hole of binding post
( or pass through whole binding post), make use of the taper different to mesh.
1) New way of connecion : welding by IGBT Intevert welder+ Argon gas
2) Chart for electrofusion fittings binding post connection : buckle on widely used.
Terminal Pin ( Binding Post )/ Electrofusion wires canex wire laying solution
CNC Controlled electrofusion wire laying machine for pad wire laying vertical and herizontal
CX-32/160ZF electrofusion wire laying machine
Fullsealed Electrofusion Wire Laying Machine
Long bed - horizental wire laying machine
Special Toolings/Fixture/Clamps for electrofusion coupler, electrofusion elbow, electrofusion tapping tee, end cap
CANEX CNC Vertical Wire Laying Machine for medium and large electrofusion fittings -canex
Electrofusion Coupler /Electrofusion Elbow /
Electrofusion stub flange / electrofusion tapping saddle / electrofusion pad available
under production of electrofusion fittings
Canex wire laying machine working at user warehouse
630 electrofusion coupler welding. canex wire laying machine for electrofusion fiting wire laying
Electrofuson fittings widely used in Water/gas pipe fitting systems.
E/F fittings practical working.
Contact Allen Hao for detail electrofusion wire laying machine informations.
