| Standard: | ISO12176-2 | Data Input: | Manual Input By Keypad Or Bar Code Scannin |
|---|---|---|---|
| Control Model: | Constant Voltage,constant Current,constant Power | Voltage: | AC110~240V;3AC350~450V |
| Power: | 3.5KW;8KW;12KW;15KW;22KW |

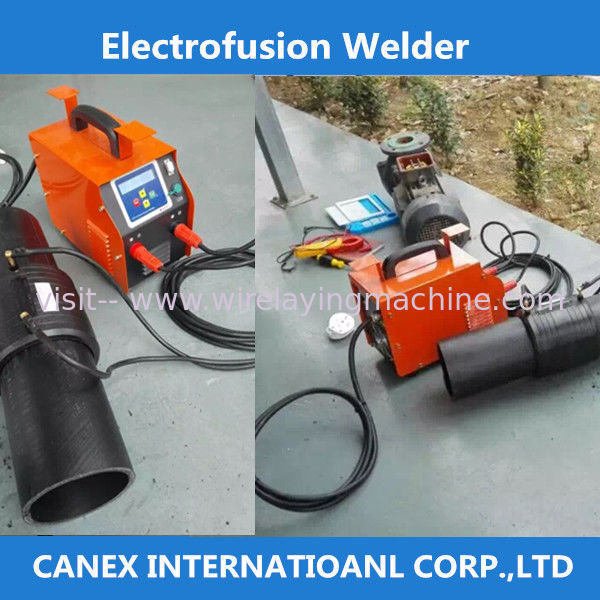

Gas and water polyethylene (PE) pipes and fittings welding equipment
Advantage and application:

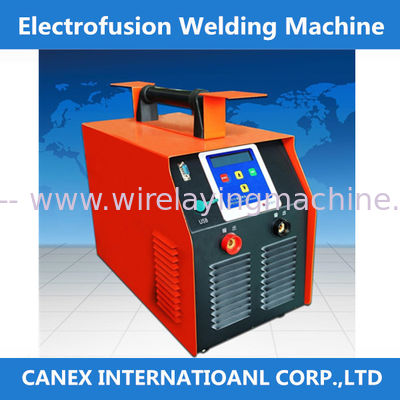

DPS10series electrofusion welding machine using true RMS control, is mainly used in connection of
gas or water polyethylene (PE) pipes and fittings. It is the perfect corollary equipment for every PE pipe,
pipe fitting manufactures and construction units.
The machine has higher performance than the international standard ISO12176-2 in welding voltage
stability, welding time accuracy and the temperature detection accuracy, etc.
Features:
1.Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection,
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3.Wide voltage Input: AC170V - 270V, adapt to site grid,
4.High brightness LCD display, Chinese or English operation, user-friendly HMI,
5.Output voltage / current / heat, past welding time / remaining time, welding status,
browser on any input data,
6.Suppression of harmonic output,
7.Protection of cable moving parts with flexible connection,
8.IP rating 54, guaranteed normal use in harsh environment.
|
Input |
|||
|
Voltage/Frequency |
(1AC220,1AC380V,3AC380) -10%~+20% 45～65Hz |
||
|
Index |
|||
|
Voltage stability |
Better than 0.25% |
Time resolution |
Better than±0.01% |
|
Current stability |
Better than 0.5% |
Temp. resolution |
±0.5℃ |
|
Energy stability |
Better than 0.5% |
Load sustained rate |
80% |
|
Others |
|||
|
Data input |
Manual input by keypad or bar code scanning. |
||
|
Programmable |
10 step programmable welding function, suitable for requirements of different pipes |
||
|
HMI |
High-brightness LCD display, user-friendly |
||
|
Data storage |
500 entries of records |
||
|
Protection against |
Input voltage fault, output overvoltage or undervoltage, overload, short circuit, frequency fault, etc. |
||
|
Cooling |
Fan cooling |
||
|
Dimensions |
Height×width×depth: 380mm×242mm×487mm |
||
