    Detailed Product Description
    E/F Fitting Range: 32-63-75-90-110-125-160 E/F Coupling, Tee,45/90 Elbow, Reducer Electrofusion Fittings Made Of: Hdpe Pipe /Injection Mould Fittings
    Training & After-sales Service: All Electrofusion Wire Laying Machines Available Wiring Terminals: Supply/technology Supply
    Binding Post Connection: Buckle /welding Together Supply Ability: 10SETS PER MONTH WIRE LAYING MACHINE
    Application: Saddle Wire Laying Machine E/F Coupling, Tee,5/90 Elbow, Reducer Brand: Canex Electrofusion Solution

    cnc controlled tapping tee electrofusion fitting wire laying machine ELECTRO-FUSION FITTING PRODUCTION EQUIPMENT

    PE electrofusion fittings wire laying pipe fitting wire laying machine pe coupling wire laying machine

    wire laying machine for pe coupler / electrofusion reducer/ electrofusion reducer / electro fusion fittings

    CNC Electro Fusion Wire Laying Machine · CX-32/160ZF  CNC Electro Fusion Wire Laying Machine

    cnc electro fusion wire laying machine

    CX-32/160ZF Electrofusion Wire Laying Machine

    Delta CNC Electro Fusion Wire Laying Machine

     New CNC electro fusion wire laying machine Polyethylene (PE) Electrofusion Fittings

    Size for : 63----160 Pipe couplings/45-90 elbow / Reducer/ Tee

    Working way :   vertical and herizontal

    Electro fusion fittings made of : hdpe pipe /injection mould fittings.

    Applications : E/F Coupling, Tee, Eelctrofusion  90degree Elbow, 45degree Elbow, Flange, E/F Reducer,  Electrofusion Pad,Saddle etc.

    Non-standard wire laying machines can be customized.: new fixture/clamps necessary.

    ELECTRO-FUSION FITTING PRODUCTION EQUIPMENT



    ONE---- Electrofusion fittings

    Electrofusion fittings:

    Electrofusion fittings are used as pipe connecting, tube inner wall surface embedded heating with copper wire, copper wire at both ends of the connection dedicated electric welding machine with terminals.





    Electrofusion Welding

    Applying a controllable ends embedded in the copper tube fever upper power supply voltage terminal, so that it is embedded in the tubular member under the action of the copper current to generate heat, the surface of the plastic pipe and the inner surface of the pipe member is inserted into the tube and melt through the plastic melt expansion force of the surface and the inner surface of the pipe fittings tangled molten plastic, play a role in the connection after melt cooling.



    Electrofusion Wire Laying Machine-Process

    Injection Molded fittings or PE Pipe as material for Electrofusion fittings,By mechanical boring cutting to achieve required inner size,Embedded copper wires into the fittings,shape the inner surface. All processes are finished after one time setup.



    The principle of wire laying.

    Pipe fittings rotate with special wiring tool.

    The wiring cutter move in accordance with CNC Programming, form a continuous fixed or variable pitch; Wiring tool cut the inner surface, scratched plastic will curve outside, embedded copper wire at the same time. Close the scratched plastic with wheels.

    CX-32/160ZF CNC E/F Wire Laying Machine



    Features

    High precision of pipe inner size(Ovality less than 0.1mm).

    Easy operation, Controlled by CNC Parameters.

    Copper wire buried by the way of cold process.wires are not encounter relaxation force or fallen.

    Low individual differences of resistance. Facilitate unified welding process.



    Applications for wire laying machine

    Pipe couplings :E/F Coupling,Tee, E/F 90°Elbow,45°Elbow,Flange,E/F Reducer,

    Electrofusion saddle wire laying.



    Production efficiency

    Spec(mm)

    32-110

    140-250

    315-630

    710-1000

    Time(min)

    3-5

    6-8

    10-15

    18-25

    Tolerance(mm)

    0.05-0.1

    0.05-0.2

    0.1-0.2

    0.1-0.2

    Pitch(mm)

    Any(CNC Programming Control)





    Horizontal Wire Laying Model and Size Range

             Size

    Model

    Pipe couplings

    (mm)







    CX-32/160ZF

    32--160







    CX-160/400ZF

    160--400







    CX-400/800ZF

    400--800







    CX-630/1000ZF

    630--1000







    Other sizes are negotiable


    Delta CNC controlled electrofusion wire laying machine

    PE Electro Fusion Fittings Equipment

    TWO---- Electrofusion fitting equipment



    Device Configuration

    1,Control system adopt DELTA CNC, our company united DELTA since 2009 , Develop 4 Axis CNC System according to our pipe fitting wire laying process design, Our company own proprietary intellectual property rights.

    2,Wire laying machine : Horizontal format machines and Vertical format machines.

    3,Adopt hydraulic or pneumatic automatic way of fastening. 4 Axis CNC Control System assure production phase and repeatedly operations.

    4,Adopt wireless hand wheel control, enjoy convenient operations

      Laying of wire in a spiral pattern to an electrofusion pad, which is then inserted in to the mould of an electrofusion saddle type fitting. Wire laying starts at the first terminal position and lays wire at double the required pitch. The tool then rotates 180 degrees and then lays wire in the opposite direction to the second terminal.

    Equipment Operating Procedures

    Pipes fittings put into machine main clamp manually.

    Cutting inner surface of pipe fittings as per CNC Programming.Achieve required size

    Embedding wires into pipe inner surface as per CNC Programming, meet design demands` pitch.(wire laying)

    Shaping inner embedded wire wall as per programmed CNC,in order to reach targeted tech demands





    Laying Wire Steps



    Heavy boring.

    Boring and chamfering under the condition of main axis started, hole & angle as per tech demands,Edit program processing automatically. (can be changed as per demands)

    Laying wire

       The process of embedding wires called laying wire

    Shaping.

    Set final boring program comply with high demands on tolerance. (Exam.0.5mm distance from surface,set final boring program ) in order to assure roundness tolerance, inner hole tolerance,and assembling smoothly.

    During the wire laying,the flipped plastic can not balance with inner surface,overmuch lead to inconvenient assembling, suggest set final boring program. (as per practical situation)





    Binding Post /Wiring Terminal

    Cutting wire and pass through centre hole of Binding post ;

    Put binding post into stamping tool;

    Press binding post into pipe fittings, remain the end of resistance at middle taper hole of binding post( or pass through whole binding post), make use of the taper different to mesh.

    Connection----

    1)  New way of connecion : welding by IGBT Intevert welder+ Argon gas

    2)  Chart for electrofusion fittings binding post connection : buckle on widely used.

    Delta CNC Electro Fusion Wire Laying Machine



     CX-32/160ZF Electrofusion Wire laying machine

      Delta CNC Electro Fusion Wire Laying Machine



    Vertical electrofusion wire laying machine for pe couplers/ electrofusion fittings

    Large Coupler Double Wire Laying

     Delta CNC Electro Fusion Wire Laying Machine



    Electrofusion wire laying machine for CX--400/630ZF Hdpe pipe couplers.

    Delta CNC Electro Fusion Wire Laying Machine



    Electrofusion wire laying machines ready for delivery and shipment

    Delta CNC Electro Fusion Wire Laying Machine

    cnc electro fusion wire laying machine

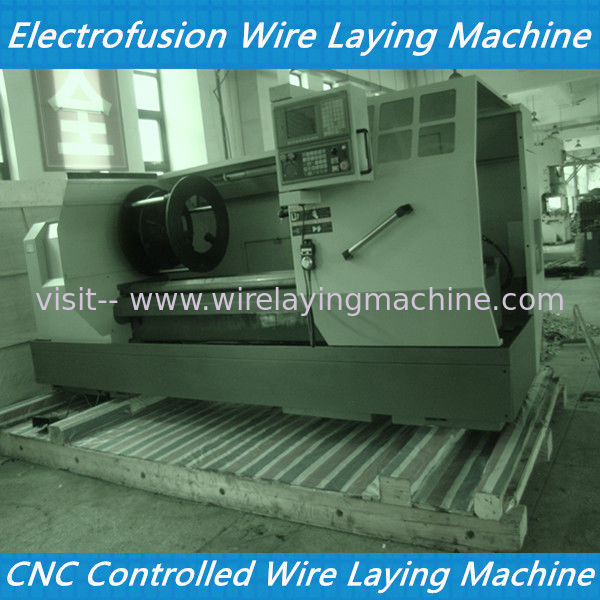

    Bed horizontal wire laying machine - CX-400/800ZF Electrofusion wire laying machine

    Delta CNC Electro Fusion Wire Laying Machine



    Customers testing and checking electro fusion wire laying machines before delivery

    Delta CNC Electro Fusion Wire Laying Machine



    Delta CNC Electro Fusion Wire Laying Machine

    electrofusion fittings wire laying CNC machines

    Electrofusion pad wire laying machine-PE Electro Fusion Fittings Equipment

    Vertical Wire Laying   Pad Wire Laying

    individual clamping equipment locates within the fixture. moulded fitting blanks or pipe

    CNC Electro Fusion Wire Laying Machine
    canex wire laying machine
    wire laying solution canex
    sections are manually loaded
