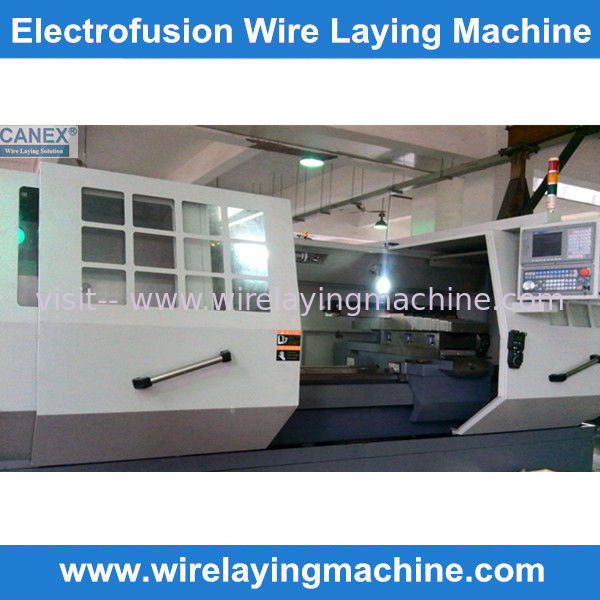

electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода

electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода

    • electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода
    • electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода
  • electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода

    Product Details:

    Place of Origin: China- fittings wire laying equipment
    Brand Name: CANEX fittings wire laying equipment - electrofusion fittings wire laying
    Certification: ISO CE electrofusion fittings wire laying machine
    Model Number: CANEX CX-160/400ZF fittings wire laying equipment
    Contact Now
    Detailed Product Description
    E/F Fitting Range: 160-400 E/F Coupling, Tee,45/90 Elbow, Reducer Electrofusion Fittings Made Of: Hdpe Pipe /Injection Mould Fittings Wire Laying Machine
    Training & After-sales Service: All Electrofusion Wire Laying Machines Available Wiring Terminals: Supply/technology Supply CNC E/F Wire Laying Machine
    Binding Post Connection: Buckle /welding Together(IGBT+AR Gas) Application: Pad Wire Laying Machine E/F Coupling, Tee,5/90 Elbow, Reducer

    CANEX CNC Horizontal Wire Laying Machine For Electrofusion

    CANEX CX-160/400ZF PE Electrofusion Wire Laying Machine

    electrofusion wire laying equipment

    pre-wing machine for electrofusion fitting , winding wire into mould core

    electrofusion fittings wire laying equipment

    машина електрофусион провода



    How to produce pe electrofusion fittings /electrofusion saddle fittings?

    socket fusion fittings wire laying machine

    barcode for electrofusion fittings







    Choose CANEX Professional wire laying equipments.



    CANEX provide one stop solutions for electrofusion fittings / pad /saddle.



    Include : electrofusion drawings / pe electrofuson moulds / electrical paramters/ barcode creater....







    CANEX Hydraulic Chuck electro fusion wire laying machine



    CANEX Pneumatic Chuck electro fusion wire laying machine







     HDPE Electro Fusion Wire Laying Machine

    CX-20/160ZF

    CX-20/125ZF

    CX-32/160ZF  Electrofusion HDPE fittings suitable for Gas and Water networks

    CX-160/315ZF  hdpe electrofusion fitting mould

    CX-160/400ZF

    CX-315/630ZF  Polyethylene Electrofusion and Spigot Fittings

    CX-400/630ZF

    CX-400/800ZF

    CX-50/250SVC Electrofusion pad wire laying machine/ tapping saddle wire laying machine

    ......



    CANEX Electrofusion Pert Fitting Production Equipment

      canex international corp.,ltd

    CANEX CX-160/400ZF Electrofusion Wire Laying Machine

    Size for : 160----400 Pipe couplings/45-90 elbow / Reducer/ Tee

    Working way :   vertical and herizontal

    Electro fusion fittings made of : hdpe pipe /injection mould fittings.

    Applications : E/F Coupling, Tee, Eelctrofusion  90degree Elbow, 45degree Elbow,
    Flange, E/F Reducer,  Electrofusion Pad,Saddle etc.

    Non-standard wire laying machines can be customized.: new fixture/clamps/toolings necessary.

    electrofusion fittings wire laying equipment

    canex wire laying machine



     pert pipe fitting production equipment





    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион проводаCANEX INTERNATIONAL CORP., LTD is a comprehensive manufacturer  for PE Electro Fusion Fittings Equipment    We develop Electrofusion wire laying machines/Injection moulds /Wiring Terminal lathe.  For the production of electrofusion fittings used to join thermoplastic pipes.    We adopt Delta (Taiwan) CNC Controlled System/ CTB Servo Motor   Schneider Electric / OMRON  etc. famous brand electrical appliances.   CANEX machines are strictly under the control of ISO9001:2000 QC system.  All CANEX CX-**/**ZF Seriesmachines have high quality and stable performance. With strong relationships and good credit,we cooperate closely to develop the global markets together.



    Horizontal Wire Laying Model and Size Range







     electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода

    electrofusion production of gas and water polyethylene (PE) Electrofusion Fittings

     pert electrofusion fittings production

    Product Description





    ONE---- Electrofusion fittings

    Electrofusion fittings:

    Electrofusion fittings are used as pipe connecting, tube inner wall surface embedded heating with copper wire,
    copper wire at both ends of the connection dedicated electric welding machine with terminals.





    Electrofusion Welding

    Applying a controllable ends embedded in the copper tube fever upper power supply voltage terminal,
    so that it is embedded in the tubular member under the action of the copper current to generate heat,
    the surface of the plastic pipe and the inner surface of the pipe member is inserted into the tube and melt through the
    plastic melt expansion force of the surface and the inner surface of the pipe fittings tangled molten plastic, play a role in the connection after melt cooling.







    Electrofusion Wire Laying Machine-Process

    Injection Molded fittings or PE Pipe as material for Electrofusion fittings,By mechanical boring cutting to achieve required inner size,
    Embedded copper wires into the fittings,shape the inner surface. All processes are finished after one time setup.





    The principle of wire laying.

    Pipe fittings rotate with special wiring tool.

    The wiring cutter move in accordance with CNC Programming, form a continuous fixed or variable pitch;
    Wiring tool cut the inner surface, scratched plastic will curve outside, embedded copper wire at the same time.
    Close the scratched plastic with wheels.





    Features

    High precision of pipe inner size(Ovality less than 0.1mm).

    Easy operation, Controlled by CNC Parameters.

    Copper wire buried by the way of cold process.wires are not encounter relaxation force or fallen.

    Low individual differences of resistance. Facilitate unified welding process.



    Applications for wire laying machine

    Pipe couplings :E/F Coupling,Tee, E/F 90°Elbow,45°Elbow,Flange,E/F Reducer,

    Electrofusion saddle wire laying.





    Production efficiency

    Spec(mm)

    32-110

    140-250

    315-630

    710-1000

    Time(min)

    3-5

    6-8

    10-15

    18-25

    Tolerance(mm)

    0.05-0.1

    0.05-0.2

    0.1-0.2

    0.1-0.2

    Pitch(mm)

    Any(CNC Programming Control)







    TWO---- Electrofusion fitting equipment



    Device Configuration

    1,Control system adopt DELTA CNC, our company united DELTA since 2009 , Develop 4 Axis CNC System according to our pipe fitting wire laying process design,
    Our company own proprietary intellectual property rights.

    2,Wire laying machine : Horizontal format machines and Vertical format machines.

    3,Adopt hydraulic or pneumatic automatic way of fastening. 4 Axis CNC Control System assure production phase and repeatedly operations.

    4,Adopt wireless hand wheel control, enjoy convenient operations





    Equipment Operating Procedures

    Pipes fittings put into machine main clamp manually.

    Cutting inner surface of pipe fittings as per CNC Programming.Achieve required size

    Embedding wires into pipe inner surface as per CNC Programming, meet design demands` pitch.(wire laying)

    Shaping inner embedded wire wall as per programmed CNC,in order to reach targeted tech demands





    Canex-Laying Wire Steps



    Heavy boring.

    Boring and chamfering under the condition of main axis started,
    hole & angle as per tech demands,Edit program processing automatically. (can be changed as per demands)

    Laying wire

       The process of embedding wires called laying wire

    Shaping.

    Set final boring program comply with high demands on tolerance. (Exam.0.5mm distance from surface,set final boring program )
    in order to assure roundness tolerance, inner hole tolerance,and assembling smoothly.

    During the wire laying,the flipped plastic can not balance with inner surface,overmuch lead to inconvenient assembling,
    suggest set final boring program. (as per practical situation)





    Binding Post

    Cutting wire and pass through centre hole of Binding post ;

    Put binding post into stamping tool;

    Press binding post into pipe fittings, remain the end of resistance at middle taper hole of binding post
    ( or pass through whole binding post), make use of the taper different to mesh.

    Connection----

    1)  New way of connecion : welding by IGBT Intevert welder+ Argon gas

    2)  Chart for electrofusion fittings binding post connection : buckle on widely used.

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода







    CANEX hdpe electrofusion fitting mould

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода







      CNC Controlled electrofusion wire laying machine for pad wire laying vertical and herizontal



    CX-32/160ZF electrofusion wire laying machine

    електрофусион фитинги каркасная установка

    Оборудование для автоматической установки проводов

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    Fullsealed Electrofusion Wire Laying Machine

    Оборудование для автоматической установки проводов



    Long bed - horizental wire laying machine

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    Special Toolings/Fixture/Clamps for electrofusion coupler, electrofusion elbow, electrofusion tapping tee, end cap

    Оборудование для автоматической установки проводов



    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    CANEX CNC Vertical Wire Laying Machine

    for medium and large electrofusion fittings -canex

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    Electrofuson fittings widely used in Water/gas pipe fitting systems.

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    E/F fittings practical working.- automatic cnc wire laying machine

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода



    Terminal Pin ( Binding Post )/ Electrofusion wires canex wire laying solution

    electrofusion coupling wire laying machine - equipment for wire laying -машина електрофусион провода
