Detailed Product Description
E/F Fitting Range: 250-280-315-355-400-450-500-560-630 E/F Coupling, Tee,45/90 Elbow, Reducer Electrofusion Fittings Made Of: Hdpe Pipe /Injection Mould Fittings
Training & After-sales Service: All Electrofusion Wire Laying Machines Available Wiring Terminals: Supply/technology Supply
Binding Post Connection: Buckle /welding Together(IGBT+AR Gas) Application: Pad Wire Laying Machine E/F Coupling, Tee,5/90 Elbow, Reducer

New CNC Machine for Wire Laying Polyethylene (PE) Electrofusion Fittings

wire laying machine for pe coupler / electrofusion reducer/ electrofusion reducer / electro fusion fittings

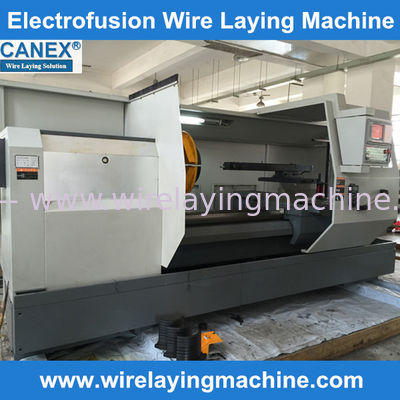

CX-250/630ZF Electro-fusion Wire Laying Machine

Polyethelyne hdpe pipe fittings  WIRE LAYING MACHINE



 New CNC electro fusion wire laying machine Polyethylene (PE) Electrofusion Fittings

Size for : 250----630  Electrofusion couplings/45-90 elbow / Reducer/ Tee

 250-280-315-355-400-450-500-560-630

Working way :   horizontal cnc wire laying machine , bed model

Electro fusion fittings made of : hdpe pipe /injection mould fittings.

Applications : E/F Coupling, Tee, Eelctrofusion  90degree Elbow, 45degree Elbow, Flange, E/F Reducer,  Electrofusion Pad,Saddle etc.

Non-standard wire laying machines can be customized.: new fixture/clamps necessary.

ELECTRO-FUSION FITTING PRODUCTION EQUIPMENT

coupler wire laying machine

electro fusion elbow wire laying machine

ONE---- Electrofusion fittings

Electrofusion fittings:

Electrofusion fittings are used as pipe connecting, tube inner wall surface embedded heating with copper wire, copper wire at both ends of the connection dedicated electric welding machine with terminals.





Electrofusion Welding

Applying a controllable ends embedded in the copper tube fever upper power supply voltage terminal, so that it is embedded in the tubular member under the action of the copper current to generate heat, the surface of the plastic pipe and the inner surface of the pipe member is inserted into the tube and melt through the plastic melt expansion force of the surface and the inner surface of the pipe fittings tangled molten plastic, play a role in the connection after melt cooling.



Electrofusion Wire Laying Machine-Process

Injection Molded fittings or PE Pipe as material for Electrofusion fittings,By mechanical boring cutting to achieve required inner size,Embedded copper wires into the fittings,shape the inner surface. All processes are finished after one time setup.



The principle of wire laying.

Pipe fittings rotate with special wiring tool.

The wiring cutter move in accordance with CNC Programming, form a continuous fixed or variable pitch; Wiring tool cut the inner surface, scratched plastic will curve outside, embedded copper wire at the same time. Close the scratched plastic with wheels.





Features

High precision of pipe inner size(Ovality less than 0.1mm).

Easy operation, Controlled by CNC Parameters.

Copper wire buried by the way of cold process.wires are not encounter relaxation force or fallen.

Low individual differences of resistance. Facilitate unified welding process.



Applications for wire laying machine

Pipe couplings :E/F Coupling,Tee, E/F 90°Elbow,45°Elbow,Flange,E/F Reducer,

Electrofusion saddle wire laying.



Production efficiency

Spec(mm)

32-110

140-250

315-630

710-1000

Time(min)

3-5

6-8

10-15

18-25

Tolerance(mm)

0.05-0.1

0.05-0.2

0.1-0.2

0.1-0.2

Pitch(mm)

Any(CNC Programming Control)





Horizontal Wire Laying Model and Size Range

         Size

Model

Pipe couplings

(mm)







CX-32/160ZF

32--160







CX-160/400ZF

160--400







CX-400/800ZF

400--800







CX-630/1000ZF

630--1000







Other sizes are negotiable





TWO---- Electrofusion fitting equipment



Device Configuration

1,Control system adopt DELTA CNC, our company united DELTA since 2009 , Develop 4 Axis CNC System according to our pipe fitting wire laying process design, Our company own proprietary intellectual property rights.

2,Wire laying machine : Horizontal format machines and Vertical format machines.

3,Adopt hydraulic or pneumatic automatic way of fastening. 4 Axis CNC Control System assure production phase and repeatedly operations.

4,Adopt wireless hand wheel control, enjoy convenient operations

  Laying of wire in a spiral pattern to an electrofusion pad, which is then inserted in to the mould of an electrofusion saddle type fitting. Wire laying starts at the first terminal position and lays wire at double the required pitch. The tool then rotates 180 degrees and then lays wire in the opposite direction to the second terminal.

Equipment Operating Procedures

Pipes fittings put into machine main clamp manually.

Cutting inner surface of pipe fittings as per CNC Programming.Achieve required size

Embedding wires into pipe inner surface as per CNC Programming, meet design demands` pitch.(wire laying)

Shaping inner embedded wire wall as per programmed CNC,in order to reach targeted tech demands





Laying Wire Steps



Heavy boring.

Boring and chamfering under the condition of main axis started, hole & angle as per tech demands,Edit program processing automatically. (can be changed as per demands)

Laying wire

   The process of embedding wires called laying wire

Shaping.

Set final boring program comply with high demands on tolerance. (Exam.0.5mm distance from surface,set final boring program ) in order to assure roundness tolerance, inner hole tolerance,and assembling smoothly.

During the wire laying,the flipped plastic can not balance with inner surface,overmuch lead to inconvenient assembling, suggest set final boring program. (as per practical situation)

vertical wire laying machine

New CNC Machine for Wire Laying Polyethylene (PE) Electrofusion Fittings

Binding Post /Wiring Terminal

Cutting wire and pass through centre hole of Binding post ;

Put binding post into stamping tool;

Press binding post into pipe fittings, remain the end of resistance at middle taper hole of binding post( or pass through whole binding post), make use of the taper different to mesh.

Connection----

1)  New way of connecion : welding by IGBT Intevert welder+ Argon gas

2)  Chart for electrofusion fittings binding post connection : buckle on widely used.

Polyethelyne hdpe pipe fittings  WIRE LAYING MACHINE

Polyethelyne hdpe pipe fittings  WIRE LAYING MACHINE



cnc electro fusion wire laying machine

electro fusion wire laying machine

wire laying machine for electro fusion fittings

wire laying machine

electrofusion wire laying



Электросварная муфта соедPolyethelyne hdpe pipe fittings  WIRE LAYING MACHINE



PE Electrofusion Pipe Fitting Mould(plastic mould) ISO12176 13950

Polyethelyne hdpe pipe fittings  WIRE LAYING MACHINE



инительная для водопроводных труб содержит в своей конструкции закрытый нагревательный элемент. Зачищенные на установочную длину цилиндрические участки и торцы двух патрубков вставляются в посадочные полости муфты, после чего вся конструкция фиксируется в специальном приспособлении.

К двум контактам, собственно и служащим отличительным признаком данного класса фитингов, подключаются электрофузионная сварочная установка и производится нагрев. Время пропускания тока и длительность периода выдержки после отключения установки указаны на электросварной муфте. Подобные фитинги используются для скрепления труб небольшого диаметра.

электрофузионная муфта



электрофузионная муфта Производственная машина

МУФТА СОЕДИНИТЕЛЬНАЯ ЭЛЕКТРОФУЗИОННАЯ
РЕДУКЦИОННЫЙ ЭЛЕКТРОСВАРНОЙ
ОТВОД ЭЛЕКТРОСВАРНОЙ 45°
ТРОЙНИК ЭЛЕКТРОФУЗИОННЫЙ
ВРЕЗКИ (СЕДЕЛКА)
ЗАГЛУШКИ С ЗАКЛАДНЫМ НАГРЕВАТЕЛЬНЫМ ЭЛЕМЕНТОМ
ДЛЯ ВРЕЗКИ (СЕДЕЛКА) PE100 SDR11
ВЕНТИЛЬ ДЛЯ ВРЕЗКИ PE100 SDR11
КОЛПАЧОК С РЕЗЬБОЙ (ДЛЯ АРМАТУРЫ ВРЕЗКА ПОД ДАВЛЕНИЕМ) PE100 SDR11
КРАН ШАРОВОЙ ДЛЯ ВОДЫ PE100 SDR11
МУФТА СОЕДИНИТЕЛЬНАЯ ЭЛЕКТРОФУЗИОННАЯ
ЭЛЕКТРОСВАРНЫЕ ФИТИНГИ
РЕДУКЦИОННЫЙ ЭЛЕКТРОСВАРНОЙ
Производственная машина
